The X-TRIANGLE impresses with

the LOW WEIGHT

available in four weight classes

small PACKING VOLUME

incl. 4-LEAF container

easy PACKING METHOD

simple with packing loops

the LOOP IN RISER

mainriser changeable in length

The X-TRIANGLE is a new kind of
paragliding and hang gliding rescue system
that combines several advantages of different systems.

The pre-brake on a rogallo brings just a little slow down of the forward speed and definitely NO slow down to zero speed. A rogallo rescue is already from the construction side build asymmetrically and has always a GIVEN FORWARD motion, without this motion the rogallo would stall like a paraglider.

That´s one of the big differences to our new X-TRIANGLE system. Because of the SYMMETRICAL CONSTRUCTION of the X-TRIANGLE this rescue DOESN´T start to fly forward after the deployment and reduces so the danger of a down-plane (scissor position) substantially. With a rogallo the pilot should at least destroy the paraglider, bring it in or disconnect it from the harness to avoid a possible down-plane. Who already experienced this one´s during flying (and not in a SIV, because there the pilot knows what is coming next) knows what he can expect in a worst case scenario.

Thus, the X-TRIANGLE system is also suitable for absolute beginner pilots from the first day on. The pilot is now not forced to catch the paraglider after a rescue opening because the X-TRIANGLE does NOT generate an unwanted FORWARD DRIVE immediately after opening and so it can hardly come to a down-plane. However, if the situation makes it possible we recommend to bring in the paraglider, make it unflyable, or even disconnect it.
(see the operating manual for more information)

The X-TRIANGLE sinks extremely pendulum-stable due to its novel 3-CORNER CONSTRUCTION, the triangular shape has a self-stabilizing effect. If the CIRCUMSTANCES REQUIERE it and the pilot has to avoid an OBSTACLE or to make a POINT LANDING, he|she can initiate the FORWARD DRIVE by pulling one or both control lines and STEER the forward motion in the desired direction by pulling a control line – left or right.
(see operating manual)

The X-TRIANGLE is the FIRST RESCUE device WORLDWIDE which has NO FORWARD SPEED right after the opening, SINKS VERTICALLY and begins the CONTROLLABLE FORWARD FLIGHT only by ACTIVELY ACTIVATING of the pilot. As a result, the X-TRIANGLE is unrestricted for ALL pilots.

The X-TRIANGLE offers

  • very simplified method to pack with numbered pack loops
  • very small pack size
  • lines are separated from stowed canopy (minimizes the possibility of line loops, optimizing the process of opening)
  • extremely low weight
  • high-quality material mix of Dyneema lines and porosity stable, water resistent 26g fabric



  • very fast opening time
  • “Loop In Riser-Technology” variable length of riser from 55 cm up to 170 cm for all possible harness sizes and frontcontainer use
  • self-stabilizing (pendulum stability) due to the new canopy shape and precisely calculated system height
  • NO forward motion after canopy opening|deploying
  • only after active intervention of the pilot controllable forward drive

We use only high-quality materials like LIROS (linen), UTT & DELCOTEX (cloth), GÜTH & WOLF (webbing), AMANN (thread), to achieve a unique product. All materials used are manufactured in EUROPE. Sophisticated and State of the art manufacturing methods guarantee best quality and a long service life according to ISO 9001.

TECHNICAL DETAILS

X-TRIANGLE 100
X-TRIANGLE 125
X-TRIANGLE 160
X-TRIANGLE 220 - Tandem
X-TRIANGLE 100
max. | min. load 100 | 50 kg
number of panels 18
weight of parachute incl. riser 1,15 kg
area 28,8 m²
number of lines 18
number of centerlines 2 | 3 | 3
sinkrate max load EN 5,47 m|s
Test standard LTF | EN (Air Turquoise)
certification EP 159.2016
container size L 24cm | B 20cm | H 10cm
container volume 3.500 cm³ (incl. lines)
system length 4,4 m
max. area load 3,47 kg|m ²
X-TRIANGLE 125
max. | min. load 125 | 65 kg
number of panels 21
weight of parachute incl. riser 1,45 kg
area 35,9 m²
number of lines 21
number of centerlines 2 | 4 | 3
sinkrate max load EN 5,43 m|s
Test standard LTF | EN (Air Turquoise)
certification EP 160.2016
container size L 26cm | B 21cm | H 11cm
container volume 4.900 cm³ (incl. lines)
system length 5,3 m
max. area load 3,48 kg|m ²
X-TRIANGLE 160
max. | min. load 160 | 90 kg
number of panels 24
weight of parachute incl. riser 1,7 kg
area 44,8 m²
number of lines 24
number of centerlines 2 | 4 | 3
sinkrate max load EN 5,42 m|s
Test standard LTF | EN (Air Turquoise)
certification EP 197.2017
container size L 28cm | B 23cm | H 12cm
container volume 5.450 cm³ (incl. lines)
system length 5,9 m
max. area load 3,57 kg|m ²
X-TRIANGLE 220 - Tandem
max. | min. load 220 | 110 kg
number of panels 30
weight of parachute incl. riser 2,4 kg
area 63,9 m²
number of lines 30
number of centerlines 3 | 5 | 4
sinkrate max load EN 5,4 m|s
Test standard LTF | EN (Air Turquoise)
certification EP 203.2017
container size L 29cm | B 24cm | H 14cm
container volume 7.000 cm³ (incl. lines)
system length 7,3 m
max. area load 3,44 kg|m ²

MATERIALS for 100 | 125 | 160 | 220

FABRIC CANOPY
LINES | RISER
WEBBING
REINFORCEMENT
THREAD
FITTINGS | RINGS
FABRIC CANOPY
LINES | RISER
WEBBING
REINFORCEMENT
THREAD
FITTINGS | RINGS

EQUIPMENT

4-LEAF CONTAINER
LOOP IN RISER
BRAKE HANDLE
NUMBERED PACKING TABS
PACKING BOARD
4-LEAF CONTAINER

Newly developed 4-leaf container leaves nothing to be desired. Very compact design with separate line compartment for a quick and safe opening.

Line compartment
Separated line compartment for a problem-free stretching of the lines and an optimized opening of the canopy. First, the lines are released and with the last line loop the canopy is opened from the container only. This construction supports a maximum throwing power. The separated line compartment to the canopy also has another important reason. The coating of the dyneema lines is spared and a possible stick together with the fabric of the canopy is prevented.

Connecting loops rescue handle | container
At the container itself more connecting loops are sewn in order to ensure maximum compatibility with all on the market available harnesses. The main loop was designed as a triangle to allow an even better, easier and more powerful deployment.

New closure system of the cover sheet
The cover sheet is closed with a plastic stick or also known as Rigid Foil. The end of the cover sheet and the plastic stick itself is tucked into a flap of the container. With this construction we do not have anymore a disturbing line bundle on top of the deployment bag that could impair the opening of the rescue out of the harness container.

Numbering of the container leaves
The individual container sheets are numbered in order to be folded 1-5.

Replaceable rubber
The rubber for closing the container leaves is interchangeable.

Fully synthetic rubber bands
All X-dream Fly rescue devices are delivered with fully synthetic rubber bands from mid-2015 on. To get the maximum and proved X-dream Fly quality we decided to equip all our rescues with this rubber bands. The advantage of this rubber bands is a longer life and less sensitivity to humidity.

LOOP IN RISER

By looping an extension on both risers, you can increase the length of the mainriser from 55 cm up to 170 cm. Thus we can achieve a maximum of compatibility from front container use to XL harness with shoulder attachment.

Montage Loop in riser

BRAKE HANDLE

Without velcro!

X-dream Fly Bremsgriff X-TRIANGLE Rettung
NUMBERED PACKING TABS

The packing tabs are numbered. It makes the packing process easier and prevents misstakes.

PACKING BOARD

Make the packing much easier for you!

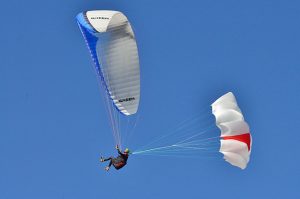

Opening sequence X-TRIANGLE

Videos X-TRIANGLE

You need help choosing your RESCUE?

The following report should help you in choosing your rescue system and show the problems of this complex issue!

If you have any questions do not hesitate to contact us

Team X-dream Fly… live your dream
