X-ONE 2018 Update

In 2018 we redone the X-ONE series and equipped it with our 26g fabric.
So we could improve the performance data of our classic rescue once again.

We modified the famous cross rescue canopy for the sport of paragliding.
For this acquired know-how we were able to develop a newly revised version, the X-ONE. We were able to reduce the overall weight and simplify the packing method, so now the packing is like a round canopy. Further we managed through design details to increase the MAXIMUM towing capacity and maintain the unmatched pendulum stability of the cross canopy.

We use only quality materials like COUSIN TRESTEC & LIROS (lines) and UTT (fabric) in order to achieve a unique product. All the materials used are produced in EUROPE. Sophisticated and modern manufacturing methods after ISO 9001 guarantee the HIGHEST QUALITY and durability.

THE X-ONE OFFERS

  • very simplified method to pack with pack loops (almost identical to the round canopy)
  • very small pack size for all sizes
  • lines are separated from stowed canopy (minimizes the possibility of line loops, optimizing the process of opening)
  • extremely fast opening time

  • high-quality material mix of Dyneema lines and 30g fabric, on the 2018 Update porosity stable, water resistent 26g fabric
  • extremely fast opening time
  • unrivaled pendulum stability and low sink rate even in situations with a disturbing main glider (due the cross shape and side blow-off canopy design)
  • no forward drive

TECHNICAL DETAILS

X-ONE 90
X-ONE 120
X-ONE 120 - Update 2018
X-ONE 160
X-ONE 160 - Update 2018
X-ONE 90
max. Load 90 kg
number of panels 16
weight of parachute 0,95 kg
surface 26 m²
number of lines 16
number of centerlines 1
sinkrate at max. load
certification
certification Shock test|resistance test 90 kg
container size L 21cm | B 19, 5cm | H 12cm
container volume 2.900 cm³
system length 5,3 m
max. area load 3,46 kg | m ²
X-ONE 120
max. load LTF 120 kg | EN 105 kg
number of panels 20
weight of parachute 1,45 kg
surface 34,5 m²
number of lines 20
number of centerlines 1
sinkrate at max. load LTF 5, 98 m|s, EN 5, 49 m|s
certification LTF | EN
certification LTF RG 065.2012
certification EN EP 128.2015
container size L 27cm | B 25 cm | H 9,5cm
container volume 4.980 cm³
system length 6,5 m
max. area load 3,48 kg | m ²
X-ONE 120 - Update 2018
max. load LTF 120 kg | EN 105 kg
number of panels 20
weight of parachute 1,24 kg
surface 34,5 m²
number of lines 20
number of centerlines 1
sinkrate at max. load LTF 5, 98 m|s, EN 5, 49 m|s
certification LTF | EN
certification LTF RG 065.2012
certification EN EP 128.2015
container size L 27cm | B 25 cm | H 9,5cm
container volume 4.600 cm³
system length 6,5 m
max. area load 3,48 kg | m ²
X-ONE 160
max. Load LTF-160 kg | EN 140 kg
number of panels 24
weight of parachute 1,95 kg
surface 44 m²
number of lines 24
number of centerlines 2
sinkrate at max. load LTF 6,02 m|s, EN 5,39 m|s
certification LTF | EN
certification LTF RG 068.2013
certification EN EP 129.2015
container size L 28cm | B 26cm | H 11,5cm
container volume 5.600 cm³
system length 7,3 m
max. area load 3,64 kg | m ²
X-ONE 160 - Update 2018
max. Load LTF-160 kg | EN 140 kg
number of panels 24
weight of parachute 1,64 kg
surface 44 m²
number of lines 24
number of centerlines 2
sinkrate at max. load LTF 6,02 m|s, EN 5,39 m|s
certification LTF | EN
certification LTF RG 068.2013
certification EN EP 129.2015
container size L 28cm | B 26cm | H 11,5cm
container volume 5.200 cm³
system length 7,3 m
max. area load 3,64 kg | m ²

MATERIALS for 90 | 120 | 160

FABRIC CANOPY
LINES | RISER
WEBBING
REINFORCEMENT
THREAD
FITTINGS | RINGS
FABRIC CANOPY
LINES | RISER
WEBBING
REINFORCEMENT
THREAD
FITTINGS | RINGS

EQUIPMENT

4-LEAF CONTAINER
TUBE CONTAINER
PACKING BOARD
4-LEAF CONTAINER

for X-dream Fly rescue series from 2015 on

Newly developed 4-leaf container leaves nothing to be desired. Very compact design with separate line compartment for a quick and safe opening. Main riser is large enough to loop the rescue through the V-belt.

Line compartment
Separated line compartment for a problem-free stretching of the lines and an optimized opening of the canopy. First, the lines are released and with the last line loop the cap is opened from the container only. This construction supports a maximum throwing power. The separated line compartment to the canopy also has another important reason. The coating of the dyneema lines is spared and a possible stick together with the fabric of the canopy is prevented.

Connecting loops rescue handle | container
On the container itself, several connecting loops are sewn on to ensure a maximum compatibility to the harnesses on the market. The main shipping binding loop was to allow triangle designed to a still better and kraftlosere release.

New closure system of the cover sheet
The cover sheet is closed with a plastic stick or also known as Rigid Foil. The end of the cover sheet and the plastic stick itself is tucked into a flap of the container. With this construction we do not have anymore a disturbing line bundle on top of the deployment bag that could impair the opening of the rescue out of the harness container.

Numbering of the container leaves
The individual container sheets are numbered in order to be folded 1-5.

Fully synthetic rubber bands
All X-dream Fly rescue devices are delivered with fully synthetic rubber bands from mid-2015 on.
To get the maximum and proved X-dream Fly quality we decided to equip all our rescues with this rubber bands. The advantage of this rubber bands is a longer life and less sensitivity to humidity.

TUBE CONTAINER

X-dream Fly rescue series 2012-2015

PACKING BOARD

Make the packing much easier for you!

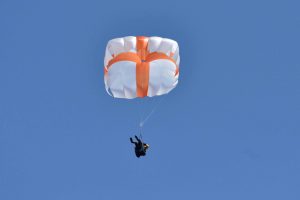

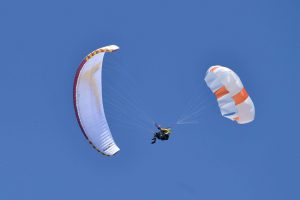

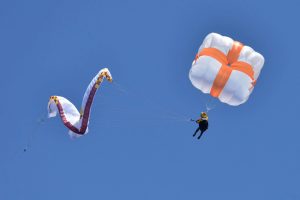

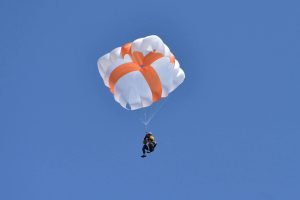

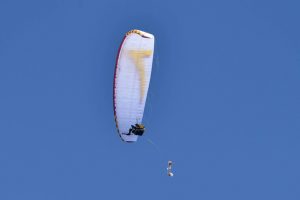

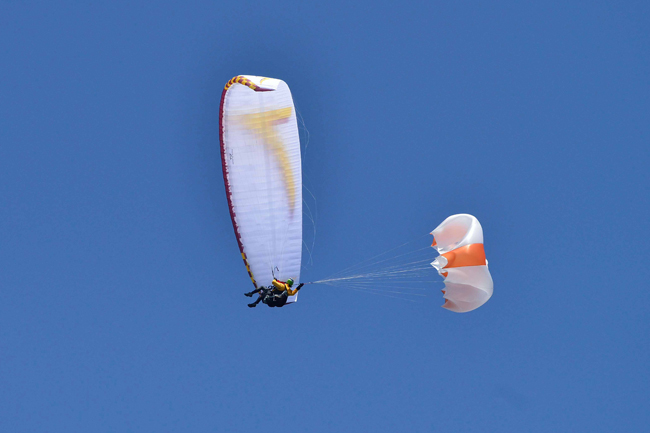

Opening sequence X-ONE

Packing Video X-ONE

You need help choosing your RESCUE?

The following report should help you in choosing your rescue system and show the problems of this complex issue!

If you have any questions do not hesitate to contact us

Team X-dream Fly… live your dream
